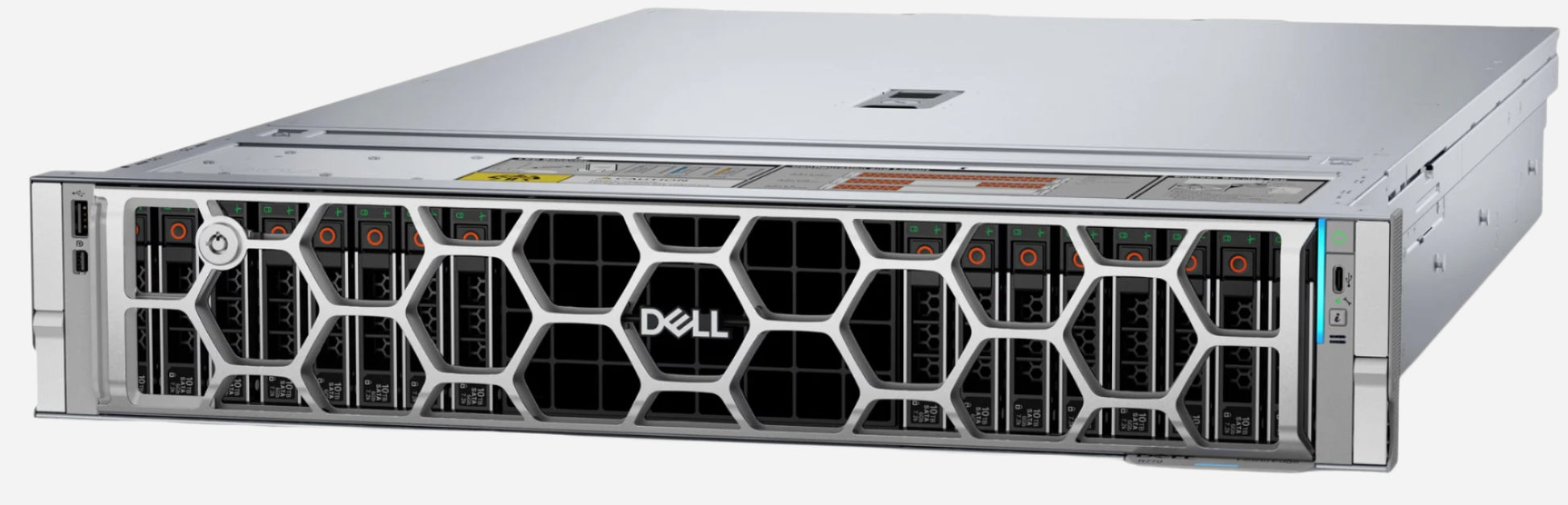

Server DELL PowerEdge R770

The DELL PowerEdge R770 is a high-performance 2U dual-socket rack server designed for demanding workloads and data centers. Here's a breakdown of its technical characteristics and intended tasks:

Technical Characteristics:

• Processors: Supports two Intel Xeon 6 processors with a maximum of 144 E-cores or 86 P-cores per processor.
• Memory:
  • 32 DDR5 DIMM slots.
  • Supports Registered ECC DDR5 DIMMs.
  • Speeds up to 6400 MT/s.
  • Maximum capacity of 8 TB RDIMM.
• Storage Controllers:
  • Internal Boot: BOSS-N1 with HWRAID 1, supporting 2 x M.2 NVMe SSDs or M.2 interposer for 2 x M.2 NVMe SSDs or USB.
  • Internal: Front PERC H965i, H975i (optional), H365i.

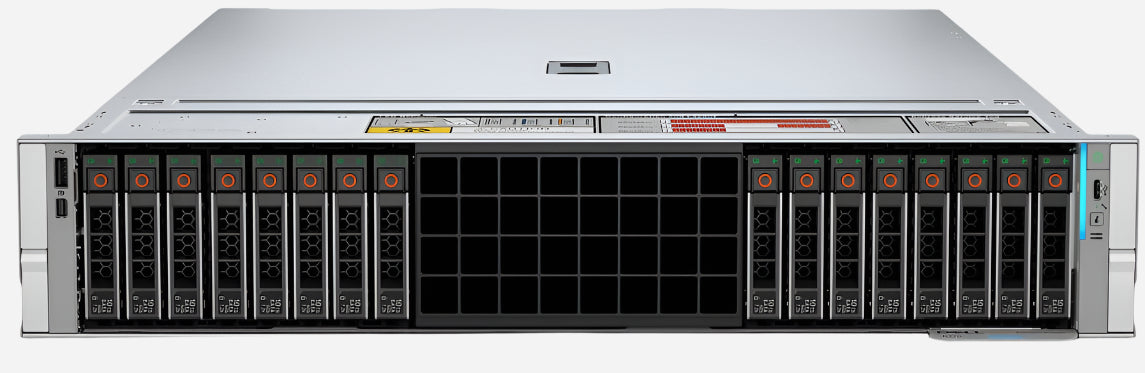

• Drive Bays (Front): Offers various configurations including:
  • Up to 8, 16, or 32 EDSFF E3.S Gen5 NVMe SSDs (up to 614.4 TB max).
  • Up to 8 x 2.5" SAS/SATA/NVMe SSDs (up to 245.6 TB max).
  • Various combinations of 2.5" SAS/SATA and NVMe SSDs.

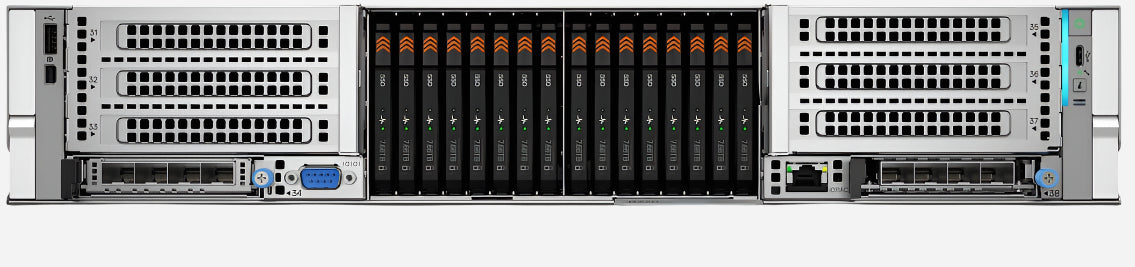

• Drive Bays (Rear): Up to 4 x EDSFF E3.S Gen5 NVMe SSDs (up to 61.2 TB max).
• Power Supplies: Offers a range of hot-swappable power supplies from 800W to 3200W with Platinum and Titanium efficiency ratings.
• Fans: Up to 6 hot-swappable high-performance Silver or Gold fans.
• Expansion Slots: Up to 8 PCIe Gen5 slots.
• GPU Support: Up to 4 x 75W single-width GPUs.
• Network Options: OCP NIC 3.0 slots (up to 2 front or 2 rear) with options for 1GbE, 10GbE, 25GbE, 100GbE, and 400GbE.
• Ports:
  • Front: 1 x USB 2.0 Type C, 1 x USB 2.0 Type A (optional), 1 x Mini-DisplayPort (optional), 1 x DB9 Serial (with front I/O), 1 x dedicated iDRAC Ethernet.

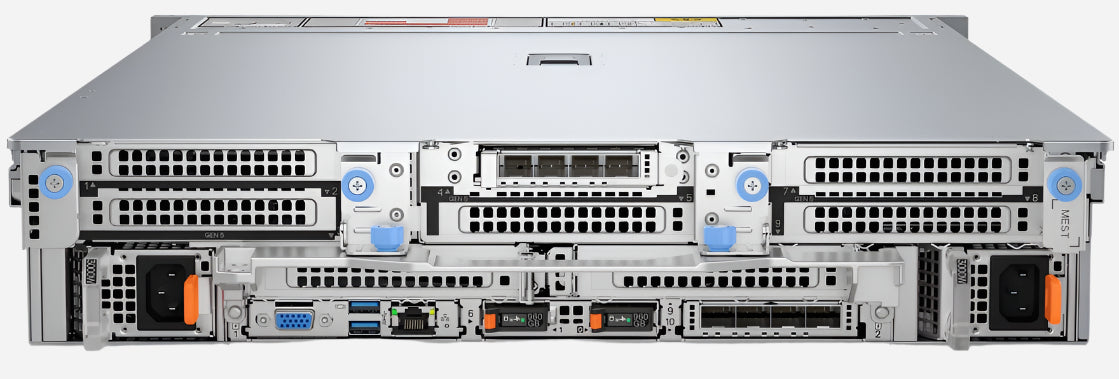

  • Rear: 2 x USB 3.1 Type A, 1 x VGA, 1 x dedicated iDRAC Ethernet.
  • Internal: 1 x USB 3.1 Type A (optional).
• Dimensions:
  • Height: 86.8 mm (3.42 inches)
  • Width: 482 mm (18.97 inches)
  • Depth: Varies based on configuration (around 801-815 mm / 31.56-32.07 inches).
• Weight: Approximately 28.53 kg (62.89 pounds).
• Management: iDRAC10 with Redfish.
• Security: Comprehensive security features including cryptographically signed firmware, secure boot, secure erase, and TPM 2.0.

Intended Tasks:

The Dell PowerEdge R770 is designed for a wide range of demanding workloads, including:

• Virtualization: Ideal for hosting multiple virtual machines, supporting various hypervisors.
• Cloud-native applications: Well-suited for modern, scalable cloud deployments.
• Artificial Intelligence (AI) Inferencing: Supports low-profile GPUs for AI inference tasks.
• Large-scale analytics: Can handle big data processing and analysis.
• Hyperscale workloads: Designed for environments requiring high density and scalability.
• Complex Data Centers: Built for the rigorous demands of modern data centers.
• High-Performance Computing (HPC): Capable of handling computationally intensive tasks. ⁸
• Databases: Suitable for running large and demanding databases.
• Software-Defined Storage (SDS): Can be a foundation for SDS solutions.

In summary, the Dell PowerEdge R770 is a powerful and versatile rack server offering a balance of performance, scalability, and efficiency for a wide array of modern IT workloads and demanding environments.
