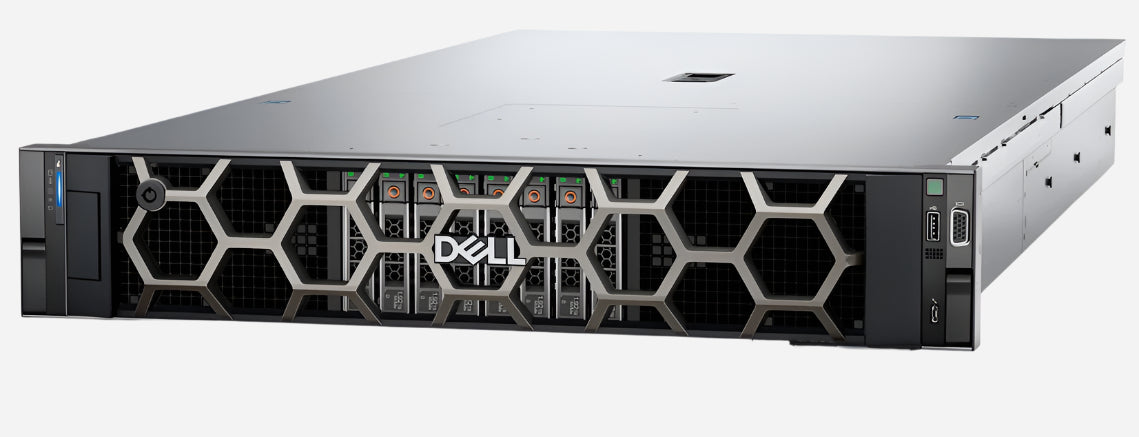

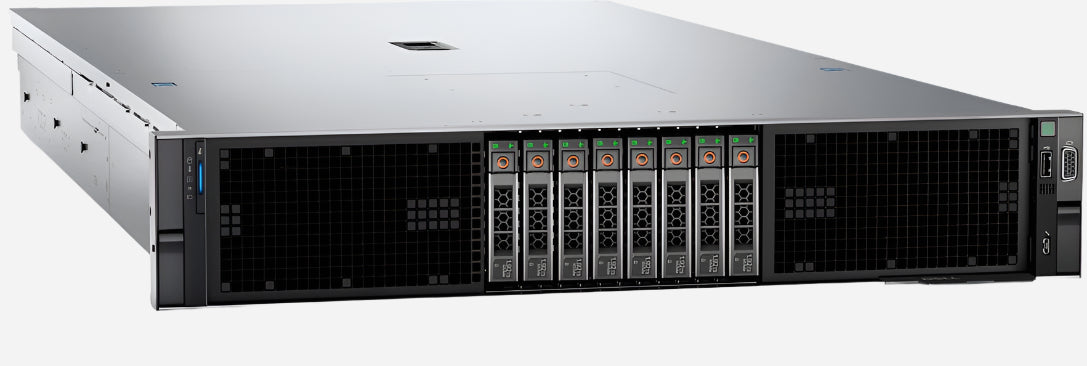

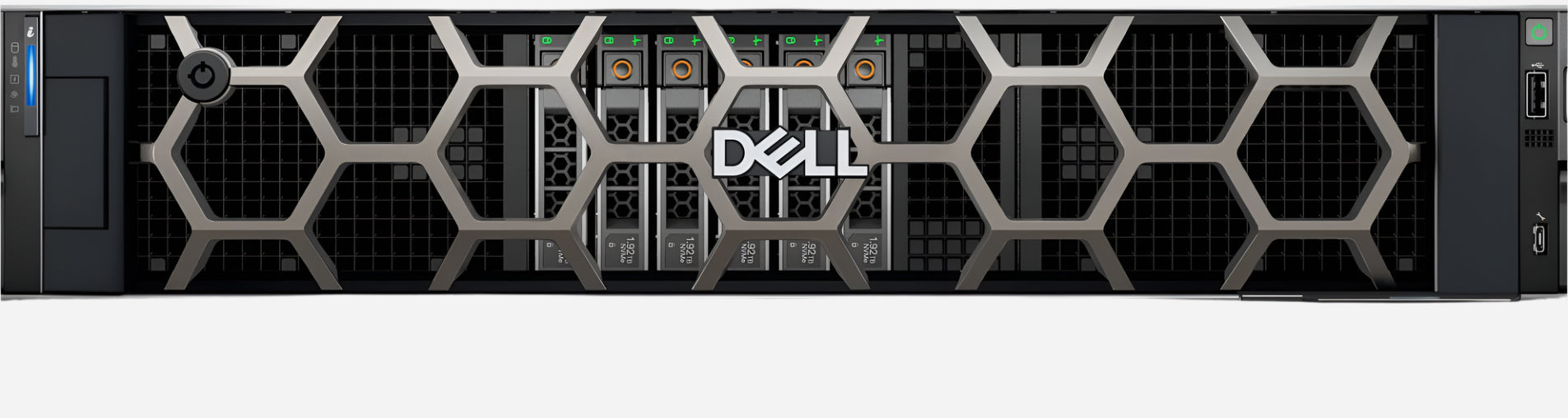

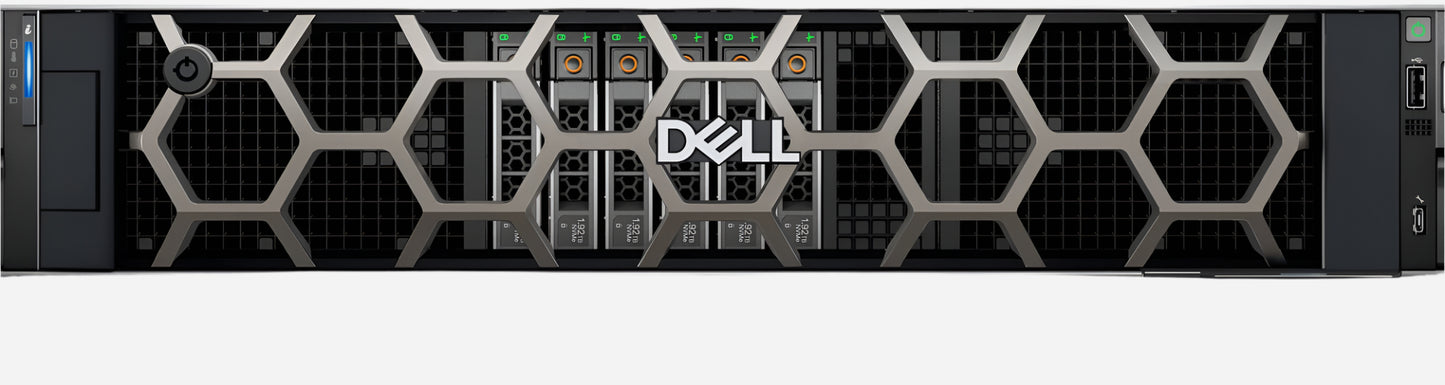

DELL PowerEdge R760xa server

The DELL PowerEdge R760xa AI H100 NVL Rack Server is a high-performance 2U rack server meticulously engineered to excel in demanding artificial intelligence (AI), machine learning (ML), and high-performance computing (HPC) workloads. Its technical characteristics and intended tasks are as follows:

Technical Characteristics:

• Processors: Supports up to two 5th Generation Intel Xeon Scalable processors, offering up to 64 cores per processor.
• Memory: Features 32 DDR5 DIMM slots, supporting Registered ECC DDR5 memory with speeds up to 5600 MT/s, and a maximum capacity of up to 8 TB.
• GPUs: Specifically designed to accommodate high-performance GPUs, including the NVIDIA H100 NVL. It can support up to 4 double-wide or 12 single-wide PCIe accelerators. The NVIDIA H100 NVL typically offers substantial high-bandwidth memory (HBM) for demanding AI workloads.
• GPU Interconnect: Leverages NVIDIA NVLink to provide high-speed, direct communication between the installed H100 NVL GPUs, crucial for efficient parallel processing in AI and ML tasks.
• Storage: Offers flexible storage options with front bays supporting up to 8 x 2.5-inch SAS/SATA/NVMe drives (max 122.88 TB) or up to 6 x 2.5-inch NVMe drives (max 92.16 TB). It also supports a Boot Optimized Storage Subsystem (BOSS-N1) with dual M.2 NVMe SSDs for the operating system.
• Expansion Slots: Provides numerous PCIe Gen5 slots to accommodate additional high-performance networking cards (like InfiniBand or high-speed Ethernet) and other expansion cards.
• Networking: Includes high-speed Ethernet options onboard and PCIe expansion slots for additional networking capabilities. Optional 1GbE or OCP 3.0 cards can be installed.
• Power Supply: Equipped with redundant, hot-swappable, high-wattage power supplies, often 2400W or 2800W, to ensure system stability and uptime, especially with power-intensive GPUs.
• Cooling: Features advanced air cooling, with potential options for direct liquid cooling in specific configurations to manage the thermal output of high-performance components.
• Management: Integrated Dell Remote Access Controller (iDRAC9) with Lifecycle Controller provides comprehensive out-of-band management for remote monitoring, management, and updates.
• Form Factor: 2U rack server, balancing density and expansion capabilities.

Intended Tasks:

The Dell PowerEdge R760xa AI H100 NVL Rack Server is purpose-built for computationally intensive tasks, particularly in the realm of AI and HPC:

• AI/ML Training: The high GPU density and the presence of NVIDIA H100 NVL GPUs with NVLink make it exceptionally well-suited for accelerating the training of complex AI and deep learning models.
• AI Inference: The powerful GPUs also enable high-throughput, low-latency inference for deployed AI models.
• High-Performance Computing (HPC): Its powerful CPUs, large memory capacity, and high-speed interconnects make it suitable for various HPC workloads, including scientific simulations, data analysis, and research.
• Advanced Analytics: Capable of handling and processing large datasets for advanced data analysis and business intelligence applications.
• Virtual Desktop Infrastructure (VDI): With the support for multiple GPUs, it can power graphics-intensive virtual desktop environments.
• Rendering Farms: Suitable for media and entertainment industries for accelerating rendering tasks.

In essence, the Dell PowerEdge R760xa with NVIDIA H100 NVL GPUs is a powerhouse server designed to tackle the most demanding computational challenges in AI, machine learning, and high-performance computing, offering a balance of processing power, GPU acceleration, memory, and storage capacity.
