Server DELL PowerEdge R570

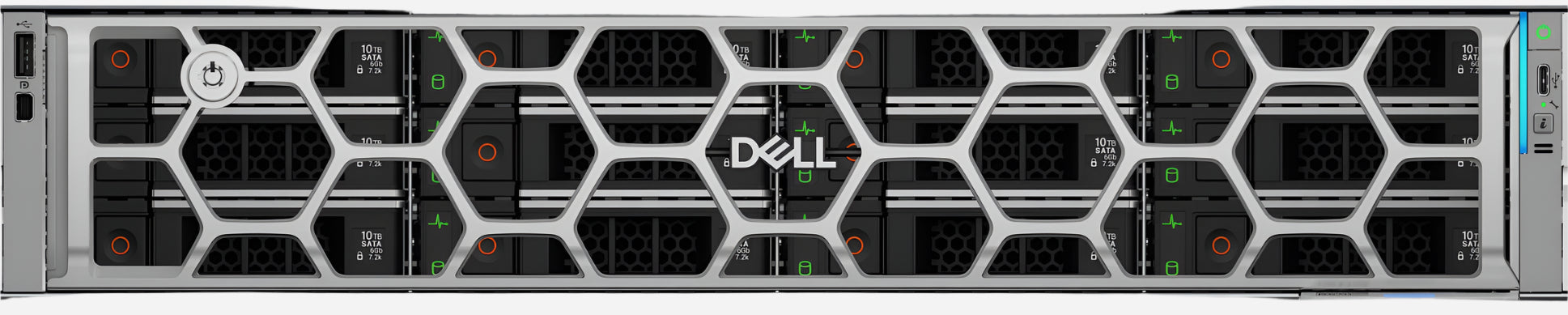

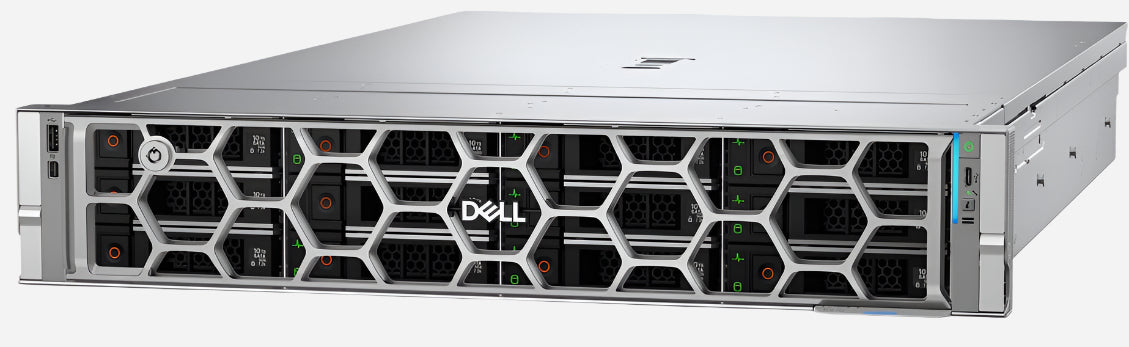

The DELL PowerEdge R570 is a 2U, single-socket rack server designed to deliver a balance of performance, efficiency, and scalability for modern data centers. Here's a breakdown of its technical characteristics and intended tasks:

Technical Characteristics:

• Processor: Supports one Intel Xeon 6 E-core processor (up to 144 cores) or one Intel Xeon 6 P-core processor (up to 86 cores).
• Memory:
  • 16 DDR5 DIMM slots with speeds up to 6400 MT/s.
  • Maximum RAM: Up to 1TB with an E-core processor or up to 4TB with a P-core processor.
  • Supports Registered ECC DDR5 DIMMs.
• Storage Controllers:
  • Internal RAID Controllers: PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter, PERC H965i Adapter.
  • Internal Boot: BOSS-N1 DC-MHS with up to 2 x M.2 NVMe SSDs.
  • External Controllers: PERC H965e, HBA 465e (optional).
• Drive Bays (Front): Offers various configurations including:

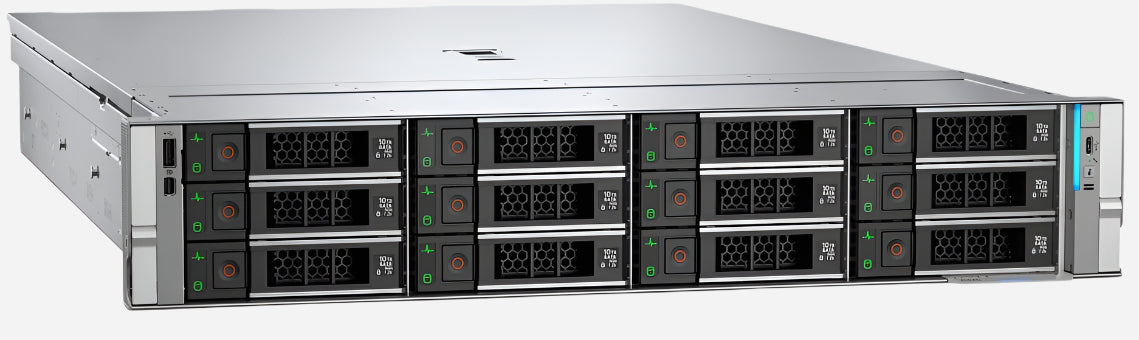

  • Up to 12 x 3.5-inch SAS/SATA HDDs (max 288 TB).
  • Up to 24 x 2.5-inch SAS4/SATA HDD/SSD (max 92.16 TB).
  • Up to 8, 16, or 32 x EDSFF E3.S Gen5 NVMe SSDs (hot-aisle, max 491.52 TB).
  • Up to 8 or 16 x EDSFF E3.S Gen5 NVMe SSDs (cold-aisle, max 245.76 TB).

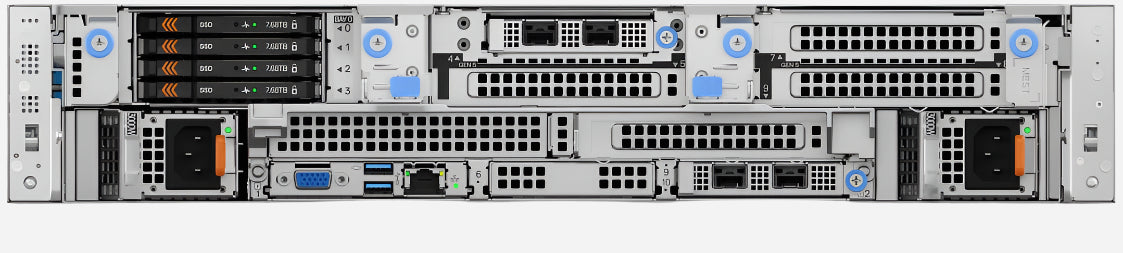

• Drive Bays (Rear): Up to 4 x EDSFF E3.S Gen5 NVMe SSDs (max 61.44 TB).
• Power Supplies: Offers 800W or 1100W Platinum/Titanium hot-plug redundant power supplies.
• Expansion Slots: Up to 4 x PCIe Gen5 slots, 2 x OCP 3 Gen5 slots.
• Networking: Broadcom BCM57508 dual 100GbE OCP 3.0.
• Management: Dell iDRAC10 DC-SCM Enterprise.
• Security: Features like cryptographically signed firmware, secure boot, secured component verification, silicon root of trust, TPM 2.0, and system lockdown.

Intended Tasks:

The Dell PowerEdge R570 is engineered for a variety of demanding workloads, including:

• Virtualization: Ideal for hosting medium-density virtual machines (VMs).
• Scale-out Databases: Offers the storage and processing power needed for growing database environments.
• VDI (Virtual Desktop Infrastructure): Capable of supporting virtual desktop deployments.
• Software-Defined Storage (SDS): Provides the flexibility and storage density required for SDS solutions.
• High-Performance Computing (HPC): The high core counts and memory capacity of the Xeon 6 processors make it suitable for compute-intensive tasks.
• Data Analytics: Can handle the demands of data processing and analysis.
• Mixed Workloads: Its balanced architecture allows it to efficiently handle a variety of different application needs.

In essence, the PowerEdge R570 is a versatile server designed to deliver a strong balance of performance and efficiency for organizations looking to optimize their data center operations and handle demanding modern workloads.
