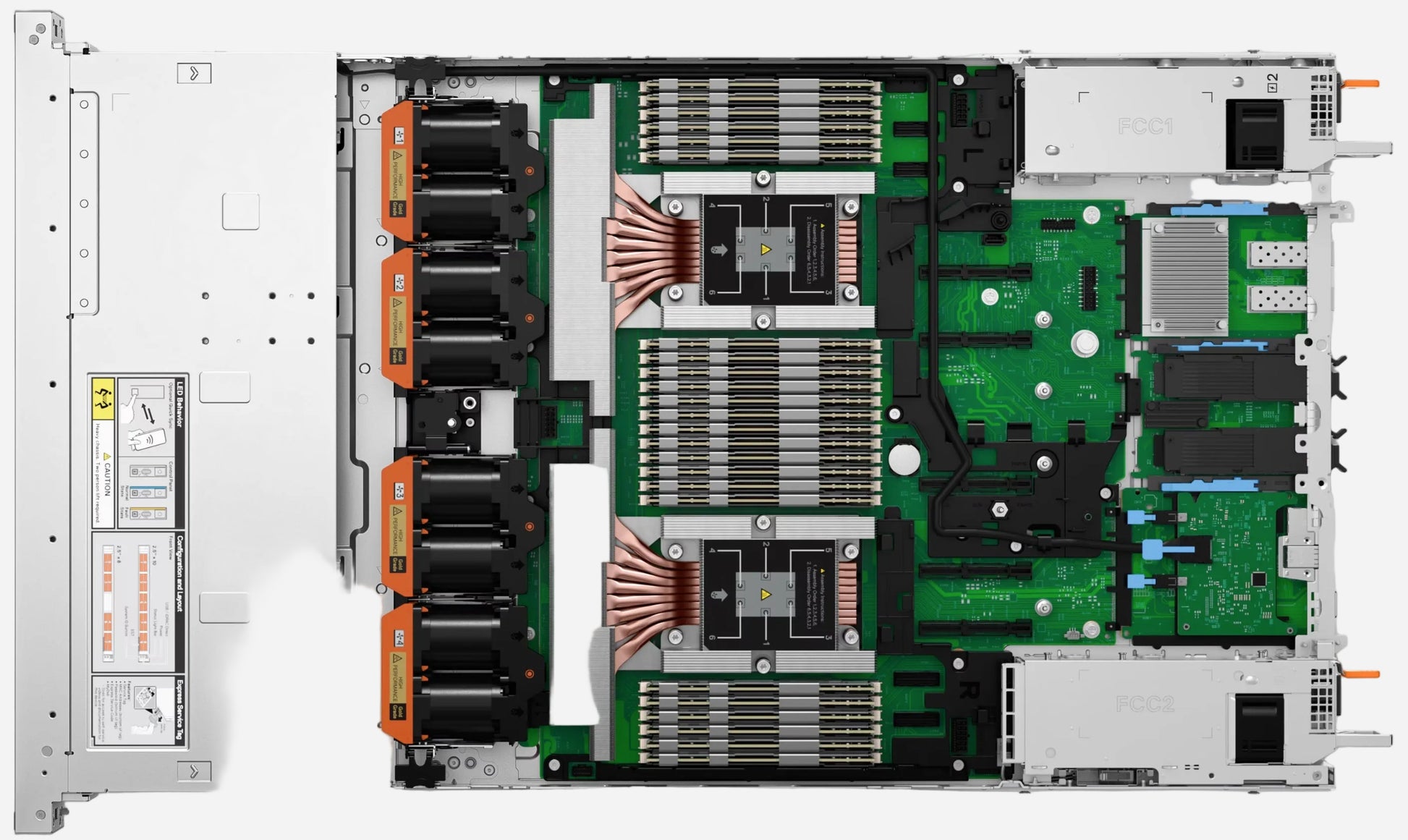

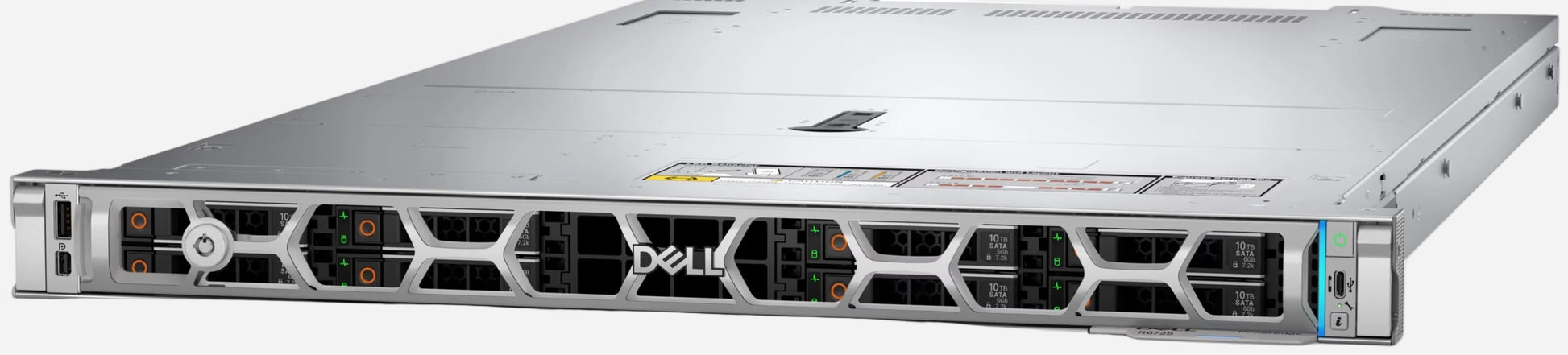

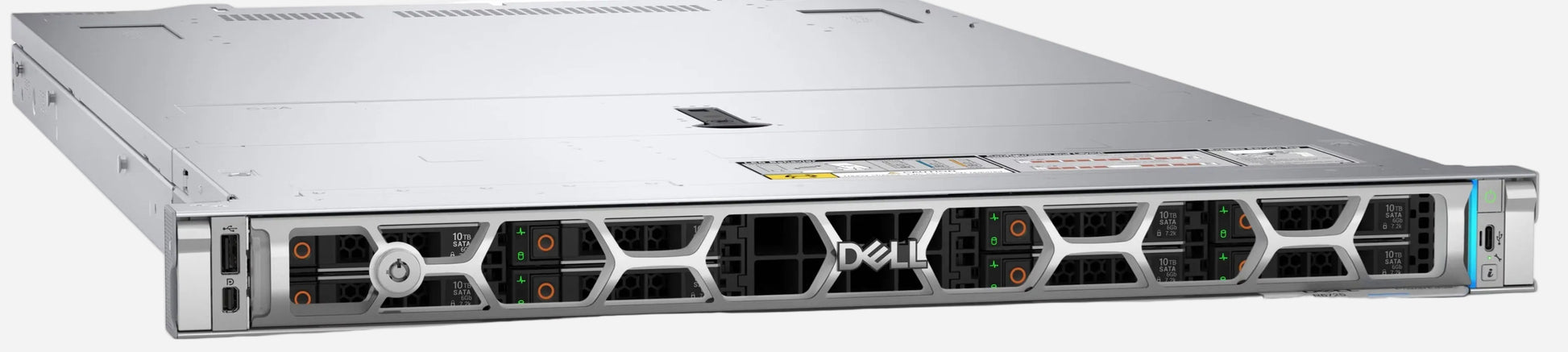

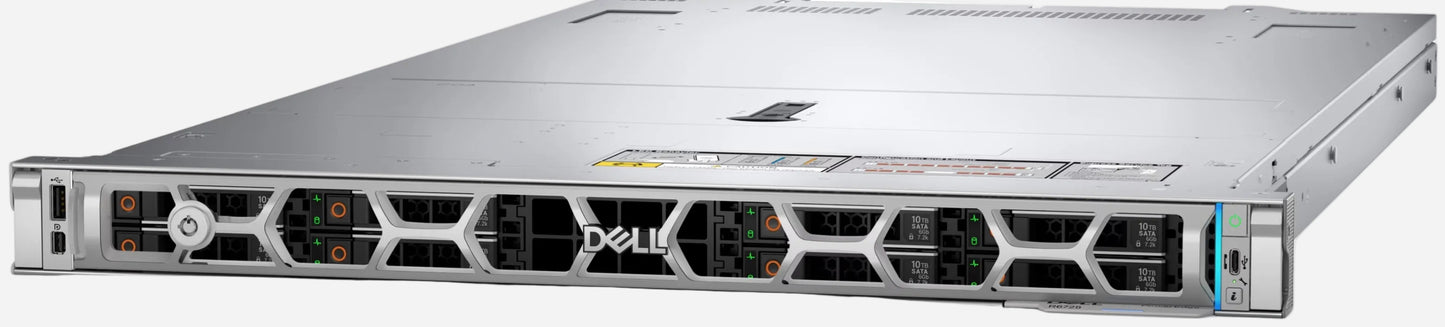

Сервер DELL PowerEdge R6725 2xAMD EPYC 9175F 4.20GHz, 16C/32T, 512 Cache

• Форм-фактор: 2U rack server
• Процессорная платформа: Dual-socket AMD EPYC 9005 Series
• Поколение: 17th Generation Dell PowerEdge
• Целевой рынок: HPC, VDI, Dense Virtualization, AI

Процессорные Спецификации

Поддерживаемые Процессоры: Two 5th Generation AMD EPYC 9005 Series processors с до 192 cores per processor

Память (Memory)

24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s. Supports registered ECC DDR5 DIMMs only.

Хранилище (Storage)

Storage Controllers

Internal Controllers (RAID): PERC H365i, H965i, H975i. Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS). External HBAs (non-RAID): HBA465e.

Drive Bays

Front Bays:

• 4 x 3.5-inch SAS/SATA
• 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
• 10 x 2.5-inch with 4 x Universal
• 8 x EDSFF E3.S Gen5 NVMe / 16 x EDSFF E3.S Gen5 NVMe

Rear Bays: 20 x EDSFF E3.S + Rear 2x EDSFF E3.S

Расширение (Expansion)

PCIe Slots

Up to three PCIe slots (x16 connectors):

• Slot 1: 1 x16 Gen5 Full Height or Low Profile
• Slot 2: 1 x16 Gen5 Low Profile or 1 x16 Gen5 OCP3.0
• Slot 3: 1 x16 Gen5 Full Height or Low Profile

Поддержка PCIe link encryption и PCIe hotplug port reconfiguration.

GPU Support

До 3x single-width GPUs с поддержкой iDRAC10 management.

Питание (Power Supply)

Доступные PSU:

• 800W Platinum/Titanium
• 1100W Platinum/Titanium
• 1400W Telco -48VDC
• 1500W Titanium
• 1500W 277 VAC & HVDC
• 1800W Titanium

Конфигурация: Hot swap redundant (1+1)

Порты и Коннекторы

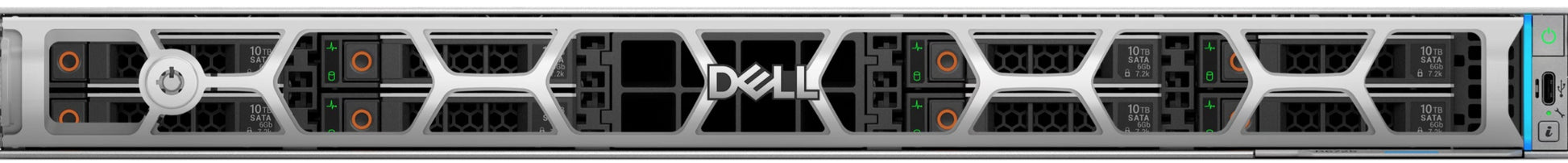

Front Ports

• 1 x USB 2.0 Type C port (HOST/BMC Direct)
• 1 x USB 2.0 Type A port (optional LCP KVM)
• 1 x Mini-DisplayPort (optional LCP KVM)

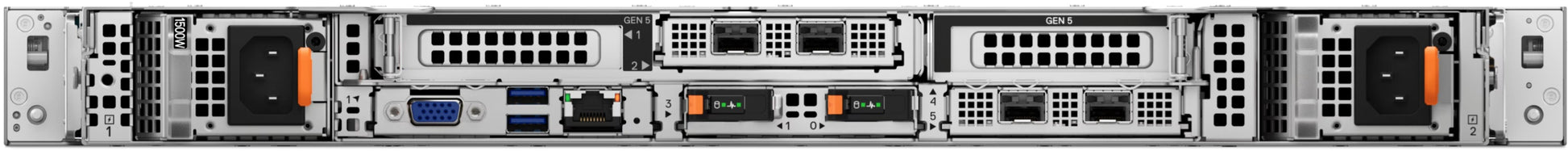

Rear Ports

• 1 x 1 Gb Dedicated BMC Ethernet port
• 2 x USB 3.1 Type A
• 1 x VGA

Internal Ports

1 x USB 3.1 Type A port

Управление (Management)

iDRAC10 с расширенными возможностями: iDRAC10 facilitates both local и remote access без необходимости дополнительных software installations. Поддерживает RESTful API, включая Redfish с specific extensions для efficient и scalable server management.

Dell OpenManage: OME offers integration с другими third-party management utilities.

Безопасность (Security)

Включает:

• AMD Secure Encrypted Virtualization (SEV)
• AMD Secure Memory Encryption (SME)
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection

Целевые Применения

Dell PowerEdge R6725 идеален для variety of workloads:

• High-performance compute (HPC)
• Virtual desktop integration (VDI)
• Dense virtualization
• Artificial Intelligence (AI)

Преимущества

Lower your total cost of ownership while reducing energy consumption и make the best use of existing data center resources.

Dell PowerEdge R6725 представляет собой мощное dual-socket решение в 2U форм-факторе, обеспечивающее до 384 ядер вычислительной мощности, 6TB памяти DDR5-6400, и гибкие storage опции с поддержкой до 20 EDSFF E3.S Gen5 NVMe дисков.
