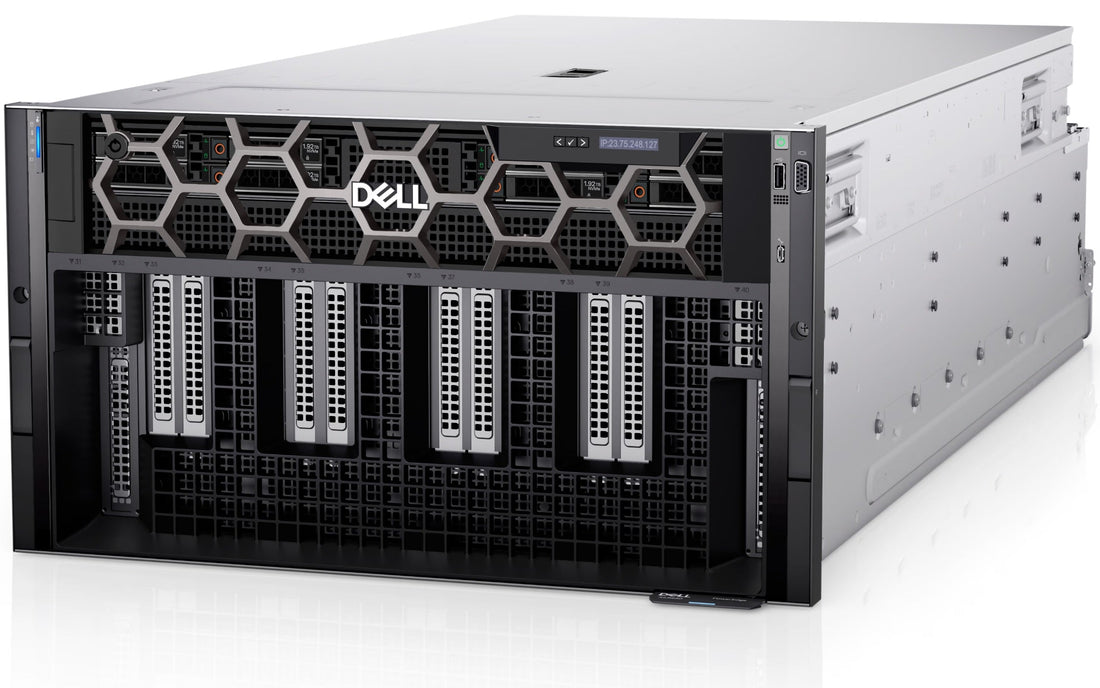

DELL Poweredge XE9680 Server Overview

DELL Poweredge XE9680 Server Overview

The Dell PowerEdge XE9680 is a high-performance, GPU-dense rack server designed for the most demanding accelerated computing workloads.

Here's a breakdown of its technical specifications and intended tasks:

Technical Specifications:

• Form Factor: 6U Rack Server
• Processors:
• Supports two 5th Generation Intel Xeon Scalable processors (up to 64 cores per processor)
• Also supports two 4th Generation Intel Xeon Scalable processors (up to 56 cores per processor)
• Memory:
• 32 DDR5 DIMM slots
• Supports up to 4 TB of RDIMM memory
• Speeds up to 5600 MT/s with 5th Gen Intel Xeon Scalable processors, and up to 4800 MT/s with 4th Gen.
• Supports registered ECC DDR5 DIMMs only.
• GPUs/Accelerators:
• 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs (fully interconnected with NVIDIA NVLink technology)
• 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs (fully interconnected with NVIDIA NVLink technology)
• 8 NVIDIA HGX A100 80GB 500W SXM4 GPUs (fully interconnected with NVIDIA NVLink technology)
• 8 AMD Instinct MI300X 192GB 750W OAM accelerators (with AMD Infinity Fabric connectivity)
• 8 Intel Gaudi3 128GB 900W OAM accelerators (with embedded RoCE ports for Ethernet connectivity)
• Storage:
• Front Bays:
• Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives (max 122.88 TB)
• Up to 16 x E3.S EDSFF NVMe direct drives (max 122.88 TB)
• Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.
• Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1) with HWRAID 1, 2 x M.2 SSDs.
• RAID Controller: PERC H965i (not supported with Intel Gaudi3), S160 (Software RAID).
• PCIe Slots: Up to 10 x16 Gen5 full-height, half-length PCIe slots (8 Gen5 slots with Intel Gaudi3 configuration).
• Networking:
• 2 x 1GbE LOM (optional)
• 1 x OCP 3.0 (x8 PCIe lanes)
• Power Supplies: Redundant, hot-swap power supplies, including:
• 2800W Titanium (200-240 VAC or 240 VDC)
• 3000W Titanium (Multi-rated, available with Intel Gaudi3)
• 3200W Titanium (277 VAC or 260-400 VDC, available in US & Canada)
• Cooling: Air cooling, with multiple high-performance fans (up to 6 in mid-tray, up to 10-12 in rear depending on configuration).
• Dimensions & Weight:
• Height: 263.2 mm (10.36 inches)
• Width: 482.0 mm (18.97 inches)
• Depth: 1008.77 mm (39.71 inches) with bezel, 995 mm (39.17 inches) without bezel
• Weight: Up to 114.05 kg (251.44 lbs)
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Dell OpenManage software.

Intended Tasks and Use Cases:

The Dell PowerEdge XE9680 is specifically designed for highly intensive, parallel processing workloads, making it ideal for:

• Artificial Intelligence (AI) and Machine Learning (ML):
• Training and Fine-tuning Large ML/DL Models: Its primary purpose is to handle the most demanding training tasks for complex AI models, including:
• Generative AI (GenAI)
• Large Language Models (LLMs)
• Recommendation engines
• Speech recognition models
• Conversational AI and chatbots
• Digital humans
• AI Inferencing: Accelerating real-time AI operations and deployment of trained models.
• High-Performance Computing (HPC):
• Complex simulations and modeling
• Molecular dynamics
• Genome sequencing
• Other data-intensive scientific and engineering computations.
• Deep Learning (DL): Especially for tasks involving large datasets.
• CRISP (presumably related to High-Resolution Imaging or advanced data processing systems).
• Healthcare: Applications requiring significant computational power for research, analysis, and medical imaging.

In essence, the XE9680 is a powerhouse server built to accelerate the most computationally demanding AI and HPC workloads, leveraging its dense GPU/accelerator configurations and high-bandwidth interconnects to deliver unparalleled performance.
