DELL Poweredge R7725 Server Overview

DELL Poweredge R7725 Server Overview

OLEKSANDR SYZOV

DELL Poweredge R7725 Server Overview

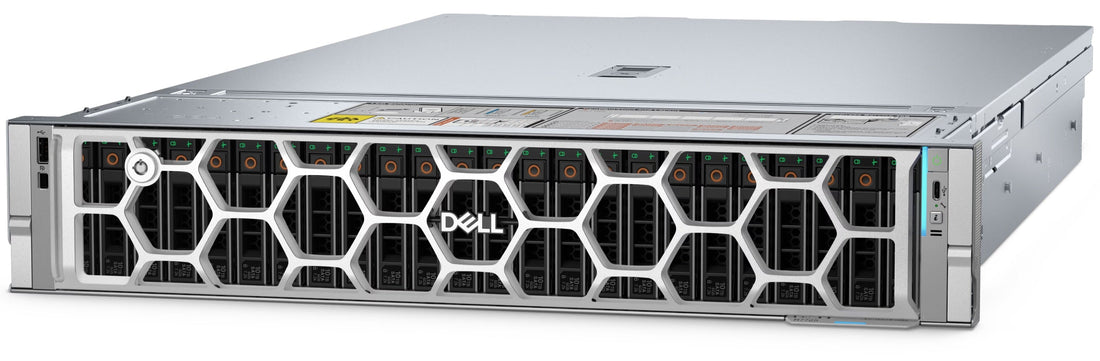

The Dell PowerEdge R7725 is a high-performance 2U dual-socket rack server designed to be a backbone for data centers and handle demanding workloads.

DELL Poweredge R7725 Server Overview

Technical Specifications:

  • Form Factor: 2U Rack Server
  • Processors: Supports two 5th Generation AMD EPYC™ 9005 Series processors, with up to 192 cores per processor.
  • Memory:
    • 24 DDR5 DIMM slots.
    • Supports RDIMM with a maximum capacity of 6 TB.
    • Speeds up to 6400 MT/s.
    • Supports registered ECC DDR5 DIMMs only.
  • Storage Controllers:
    • Internal RAID: PERC H365i, H965i, H975i
    • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
    • External HBAs (non-RAID): HBA465e (optional)
  • Drive Bays (Front):
    • Up to 12 x 3.5-inch SAS/SATA
    • Up to 24 x 2.5-inch SAS/SATA
    • Configurations including 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
    • Options for EDSFF E3.S drives (e.g., 8, 16, 32, or 40 x EDSFF E3.S)
  • PCIe Expansion: Up to 8 PCIe Gen 5 slots (x8 or x16 connectors), offering flexibility for various workload requirements.
  • GPU Options: Supports up to 2 x 400W DW (Double Width) GPUs or up to 6 x 75W SW (Single Width) GPUs for AI workloads.
  • Networking:
    • Dual OCP NIC 3.0 card support (optional).
    • Supports various speeds: 1GbE, 10GbE, 25GbE, 100GbE, and 400GbE.
    • Dedicated BMC Ethernet port.
  • Ports:
    • Front: 1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (HOST/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM)
    • Rear: 1 x dedicated BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
    • Internal: 1 x USB 3.1 Type-A
  • Power Supplies: Various options including Platinum and Titanium efficiencies (e.g., 800W, 1100W, 1500W, 1800W, 2400W, 3200W), and Telco -48VDC options.
  • Cooling: Air cooling and Direct Liquid Cooling (DLC) options, with up to six hot-plug fans.
  • Management: iDRAC10, iDRAC Direct, iDRAC RESTful API with Redfish, Racadm CLI.
  • Security: TPM 2.0, chassis intrusion detection, cyber-resilient architecture.
  • Dimensions:
    • Height: 86.8 mm (3.42 inches)
    • Width: 482 mm (18.98 inches)
    • Depth: 802.4 mm (31.59 inches) with bezel; 801.51 mm (31.55 inches) without bezel.
  • Operating Systems: Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, VMware ESXi.

Intended Tasks:

The Dell PowerEdge R7725 is designed for high-requirement data applications and a wide range of demanding workloads, including:

  • Big Data Analytics: Its high core count processors, substantial memory capacity, and flexible storage options make it suitable for processing and analyzing large datasets.
  • Artificial Intelligence (AI) and Machine Learning (ML): With support for multiple high-wattage GPUs and ample PCIe Gen 5 bandwidth, it can accelerate AI training and inference tasks.
  • High-Performance Computing (HPC): The powerful AMD EPYC processors and high memory bandwidth are ideal for computationally intensive scientific and engineering workloads.
  • Virtualization: Its robust CPU and memory capabilities make it an excellent platform for hosting a large number of virtual machines and supporting various hypervisors.
  • Cloud-Native Applications: Well-suited for modern, scalable cloud deployments.
  • Databases: Capable of running large and demanding database applications.
  • Software-Defined Storage (SDS): Can serve as a strong foundation for SDS solutions due to its flexible storage configurations and high I/O capabilities.
  • General Purpose Data Center Workloads: Its versatility and performance make it a strong candidate for various traditional and emerging data center workloads.

In essence, the PowerEdge R7725 offers a powerful and flexible platform for organizations needing to maximize performance and scalability for their most demanding compute and data-intensive applications.
