DELL Poweredge R7715 Server Overview

DELL Poweredge R7715 Server Overview

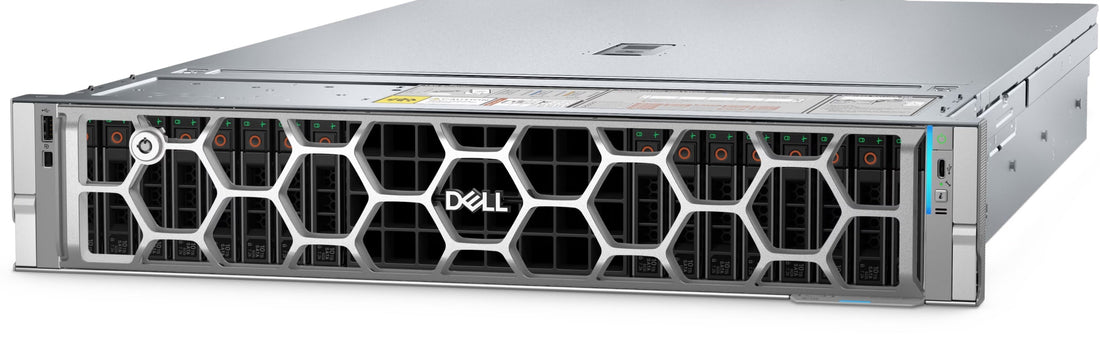

The Dell PowerEdge R7715 is a high-performance, single-socket 2U rack server designed for demanding enterprise workloads.

Here's a breakdown of its technical specifications and intended tasks:

Technical Specifications:

• Form Factor: 2U Rack Server
• Processor: One 5th Generation AMD EPYC™ 9005 Series processor, with configurations offering up to 160 cores per processor.
• Memory:
• 24 DDR5 DIMM slots
• Supports RDIMM (Registered DIMMs) only with ECC.
• Maximum capacity: Up to 6 TB (Terabytes)
• Speeds: Up to 5200 MT/s (MegaTransfers per second)
• Storage Controllers:
• Internal RAID: PERC H365i, H965i, H975i (various RAID controller options)
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
• External HBAs (non-RAID): HBA465e
• Drive Bays:
• Front Bays (various configurations):
• 2 x U.2
• 12 x 3.5-inch SAS/SATA
• 8 x 2.5 Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
• 16 x 2.5-inch SAS/SATA SSD + 8 x U.2 NVMe drives
• EDSFF E3.S options: 8, 16, 32, or 40 x EDSFF E3.S drives
• GPU Options: Supports up to 3x 400W double-wide GPUs or 6x 75W single-wide GPUs.
• PCIe Expansion: Up to eight PCIe Gen5 x16 slots.
• Networking:
• 1 Gb dedicated BMC Ethernet port
• Optional 2 x OCP NIC 3.0 cards (1GbE, 10GbE, 25GbE, 100GbE, and 400GbE options available)
• PCIe Add-in Card (AIC) NICs for 100 GbE and 400GbE, including NDR VPI (400GbE) and FC 32.
• Ports:
• Front: 1 x USB 2.0 Type-A (optional LCP KVM), 1 x USB 2.0 Type-C (HOST/BMC Direct), 1 x Mini DisplayPort (optional LCP KVM)
• Rear: 1 x 1 Gb Dedicated BMC Ethernet port, 2 x USB 3.1 Type-A, 1 x VGA
• Internal: 1 x USB 3.1 Type-A
• Management:
• iDRAC 10
• iDRAC Direct
• iDRAC RESTful API with Redfish
• Racadm CLI
• OpenManage Enterprise (OME) suite (OME Power Manager, OME Services, OME Update Manager, OME APEX AIOps Observability)
• Cooling: Up to six hot-plug fans (liquid cooling options also available).
• Dimensions:
• Height: 86.8 mm (3.41 inches)
• Width: 482.0 mm (18.97 inches)
• Depth: 802.4 mm (31.59 inches) with bezel; 801.51 mm (31.55 inches) without bezel
• Security Features: Chassis Intrusion Detection, cyber-resilient architecture (silicon root of trust, secured component verification, signed firmware, drift detection, BIOS recovery, dynamic system lockdown).

Intended Tasks and Use Cases:

The Dell PowerEdge R7715 is engineered for high-requirement data applications and workloads that benefit from high core counts, substantial memory capacity, and flexible I/O. Its key intended tasks include:

• Virtualization: With its high core count AMD EPYC processor and large memory capacity, it's an excellent choice for dense virtualization environments, helping to reduce licensing costs.
• High-Performance Computing (HPC): The powerful processor, ample memory, and support for high-speed PCIe Gen5 and GPU options make it suitable for compute-intensive HPC tasks.
• Data Warehousing and Analytics: Its ability to handle large datasets and demanding processing makes it ideal for data analytics, data warehousing, and business intelligence applications.
• Databases: The R7715 can efficiently run large and complex database systems that require significant CPU, memory, and fast storage.
• eCommerce: For high-volume eCommerce platforms, the server provides the necessary performance and scalability to handle numerous transactions and user requests.
• Hyper-Converged Infrastructure (HCI): Its balance of cores, memory, and flexible storage configurations makes it well-suited for HCI deployments.
• Software-Defined Storage (SDS): The diverse storage bay options and powerful processing enable efficient software-defined storage solutions.
• AI/Machine Learning (ML): With support for multiple GPUs, the R7715 can be configured for AI and ML training and inference workloads.

In essence, the Dell PowerEdge R7715 is a versatile and powerful server that excels in environments demanding high performance, scalability, and efficiency for a wide range of enterprise and data-intensive applications
