DELL Poweredge R760XA Server Overview

DELL Poweredge R760XA Server Overview

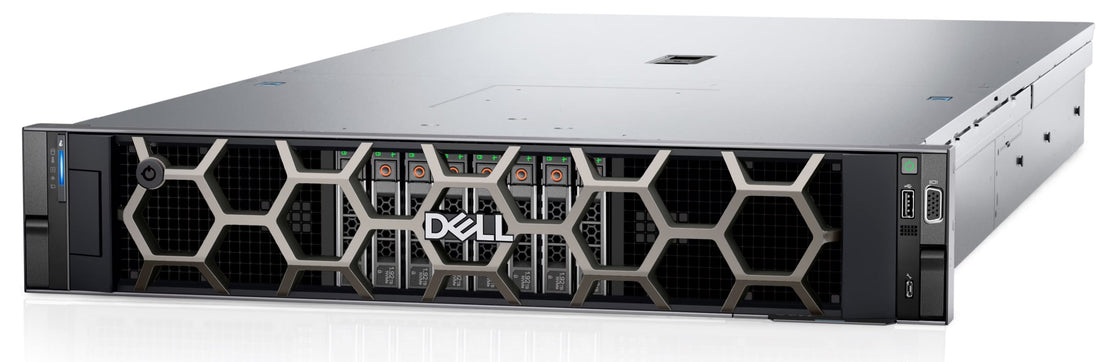

The Dell PowerEdge R760xa is a high-performance 2U rack server designed for demanding workloads, particularly those requiring significant computational power and accelerator support.

Here's a breakdown of its key technical specifications and intended tasks:

Technical Specifications:

• Form Factor: 2U rack server
• Processors:
• Up to two 5th Generation Intel Xeon Scalable Processors (with up to 64 cores per processor).
• Also supports 4th Generation Intel Xeon Scalable Processors (with up to 56 cores per processor).
• Features optional Intel QuickAssist Technology for accelerating cryptographic and compression workloads.
• Memory:
• 32 DDR5 DIMM slots.
• Supports RDIMM with a maximum capacity of up to 8 TB.
• Memory speeds up to 5600 MT/s on 5th Gen Intel Xeon Scalable processors and 4800 MT/s on 4th Gen.
• Accelerators (GPUs):
• Supports up to four double-wide GPU accelerators (e.g., NVIDIA H100).
• Alternatively, supports up to 12 single-wide GPU accelerators.
• Storage:
• Front Bays:
• Up to 6 x 2.5-inch NVMe (max 92.16 TB)
• Up to 8 x 2.5-inch SAS/SATA/NVMe (max 122.88 TB)
• Up to 6 x E3.S Gen5 NVMe (max 46.08 TB)
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1) with HWRAID for 2 x M.2 NVMe SSDs, or USB.
• Storage Controllers: Various options including PERC H965i, H755, H355, HBA355i, HBA465i, and Software RAID S160.
• PCIe Expansion: Up to twelve PCIe 5.0 enabled expansion slots (x16 connector).
• Networking:
• Optional 2 x 1GbE LOM card.
• Optional 1 x OCP card 3.0.
• Power Supplies: Redundant, hot-swap AC or DC power supply units, including 2400W Platinum, 2800W Titanium, and 3200W Titanium options.
• Cooling: Air cooling, with optional Direct Liquid Cooling (DLC) for specific CPU configurations and rack solutions.
• Security: Cryptographically signed firmware, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, TPM 2.0 FIPS/CC-TCG certified, System Lockdown.
• Management: iDRAC9 Enterprise or Datacenter for remote management.

Intended Tasks and Use Cases:

The Dell PowerEdge R760xa is specifically engineered for workloads that demand extreme performance, high parallel processing capabilities, and large datasets. Its robust accelerator support and high-speed memory make it ideal for:

• High-Performance Computing (HPC): Scientific research, complex simulations, computational fluid dynamics, and other compute-intensive applications.
• Artificial Intelligence (AI) and Machine Learning (ML):
• AI Training: Training large and complex AI models, including deep learning neural networks, which benefit significantly from multiple GPUs.
• Deep Learning Inference: Performing real-time predictions with trained AI models.
• Distributed AI Training: Leveraging frameworks like KubeRay and Hugging Face Accelerate for scaling AI training across multiple nodes.
• Data Analytics: Processing massive datasets for insights, especially when combined with GPU-accelerated analytics platforms.
• Virtual Desktop Infrastructure (VDI) requiring GPU acceleration: Supporting a high density of users with graphics-intensive applications.
• Graphics and Rendering: High-end graphics rendering, animation, and video processing.

In essence, the R760xa is a "workhorse" server designed to accelerate application insights and deliver superior outcomes in environments where traditional CPU-centric servers fall short due to the computational demands of modern applications.
